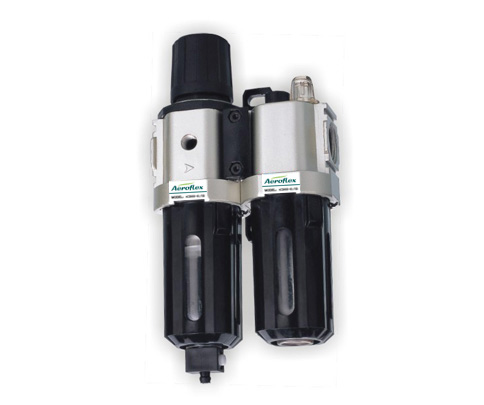

        MAC Series

MAC Series:
MAC series: This series air source treatment unit has tight structure, large flow rate and steadily output. And it is also easy to be installed.


MACP300-8A/10A/1...MACT300-8A/10A/1...
Model MACP300
Assembly MAFR300,MAL300
Joint Pipe Bore Code 8A 10A
Joint Pipe Bore Dimension PT1/4 PT3/8
Working Pressure Range 0~0.99MPa
Pressure Resistance 1.5MPa
Pressure Range 0.05~0.85MPa
Operating Flow Air
Ambient Temperature 5~60℃
Filter Precision 5um
Capacity Of Oil Feed Cup 55c.c
Min.Air Flow of Oil 50e/min 60e/min
Recommended Oil Use Machine Oil ISO-VG32
Weight 720g
Accessory Pressure Gauge,Bracket
MAC Series
