        FV series foot valves

FV series foot valves:

Foot –petal FV series: This series valve is used in all kinds of pneumatic system. It is often operated by the foot, without hands. The working pattern is 3/2, which R、P position can be changed from each other. Thus it makes normally closed to normally open.




FV4FK25R7-8

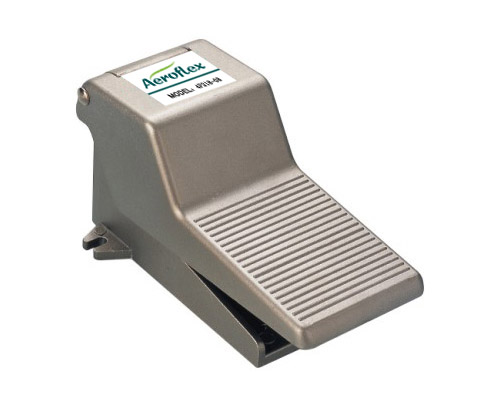

4F
Joint Pipe Bore Air Inlet=OutletPT1/4
Working Medium Air
Working-Pressure Range 0~8.0Kgf/c㎡
Operating Temperature Range -5~60℃
Action mode
Direct Drive Type
4F Ordering Code
4F 08 L
Specification Code Joint Pipe Code Type Code
4F210:Two-position  Five-way Foot Valve 08:PT1/4 Blank:standard type
    L:with lock
    G:with cover
    LG:with lock and cover
4F
