        Angle seat valve

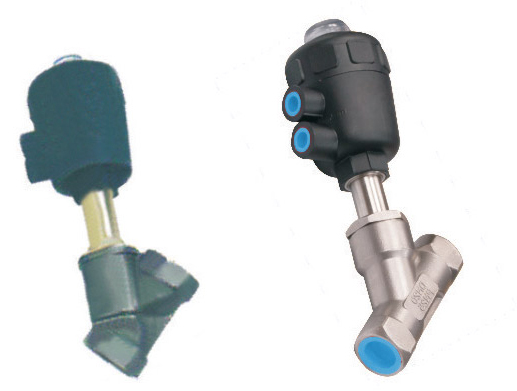

Angle seat valve:
AEROFLEX Angle seat valve is made of two kinds of material: stainless steel and tin bronze. It also has various types of port size from 1/2” to 2”.


JZF

JZF            - 15 D
Specification Code Orifice size Valve Body Mateira
  15,20,25,32,40,50 D:Tin bronze
JZF:Angle Seat Valve   Blank:Stanless Steel

Orifice Size(mm) Port size (G) KV Value(m3/h) Max.Mpa
15 G1/2" 4.2 0~1.6
20 G3/4" 8 0~1.1
25 G1/2" 19 0~1.1
32 G11/4" 27.5 0~1.5
40 G11/2" 42 0~1.25
50 G2" 55 0~1.0
