        L/H/R series hand valves

L/H/R series hand valves:

L/H/R hand valve: This series is including three kinds such as the hand-pull 、hand- switching and hand valve. The working pattern is 3/2,4/3,5/2. It is small, but has beautiful structure. It has port size from 1/8” to 3/8”.




4H4R3R

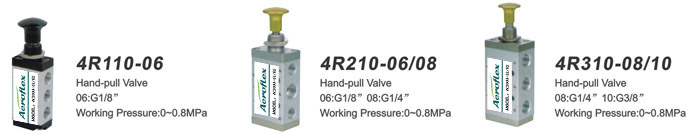

4R
Working Medium Air
Joint Pipe Bore Air Inlet=Air Outlet=PT1/8~3/8
Number of Places Two-position Five-way
Working-Pressure  0~8.0Kgf/c㎡
Operating Temperature Range -5~60℃
Ensured Pressure Resistance 12.0Kgf/c㎡
4R Ordering Code
1 10 06
Series No Number of Places Joint pipe Bore
1:100Series 10:Double-position 06:PT1/8
2:200Series   08:PT1/4
3:300Series   10:PT3/8
4R
