        L/H/R series hand valves

L/H/R series hand valves:

L/H/R hand valve: This series is including three kinds such as the hand-pull 、hand- switching and hand valve. The working pattern is 3/2,4/3,5/2. It is small, but has beautiful structure. It has port size from 1/8” to 3/8”.




4H4R3R


Joint Pipe Bore Air Inlet=OutletPT1/8=~PT3/8
Working Medium Air
Operating-Pressure Range 0~8.0Kgf/c㎡
Operating Temperature Range 1.2Kgf/c㎡
Position and Way Number -5~60℃
3R订购码
1 10 06 NO
Series No. Number of Places Joint Pipe Bore Initial State
1:100Series 10:Double-position 06:PT1/8 NC:Normal Close Type
2:200Series   08:PT1/4 NO:Normal Open Yype
3:300Series   10:PT3/8

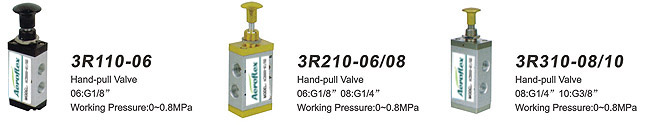

3R
