        L/H/R series hand valves

L/H/R series hand valves:
L/H/R hand valve: This series is including three kinds such as the hand-pull 、hand- switching and hand valve. The working pattern is 3/2,4/3,5/2. It is small, but has beautiful structure. It has port size from 1/8” to 3/8”.


4H4R3R

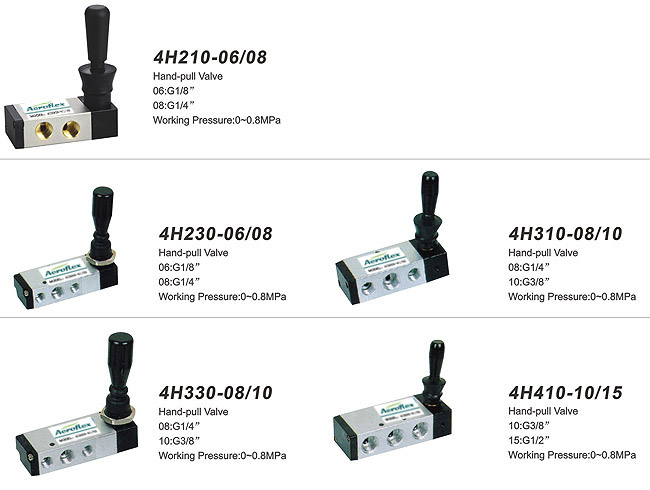

4H
Working Medium Air
Joint Pipe Bore Air Inlet=Outlet=Exhaust=G1/8~G1/4
Motion Pattern Direct Drive Type
Working-pressure Range 0~8.0Kgf/c㎡
Operating Temperature Range -5~60℃
4H Ordering Code.
4V 2 10 06
Sepcification Code Series Code Number of Places Joint Pipe Bore
4V:Two(Three)-position Five-way Hand-pull Vavle 2:200 Series 10:Single-head Double-position 06:PT1/8
  3:300 Series 20:Double-head Double-position 08:PT1/4
      10:PT3/4
