        Rotary valves

Rotary valves:

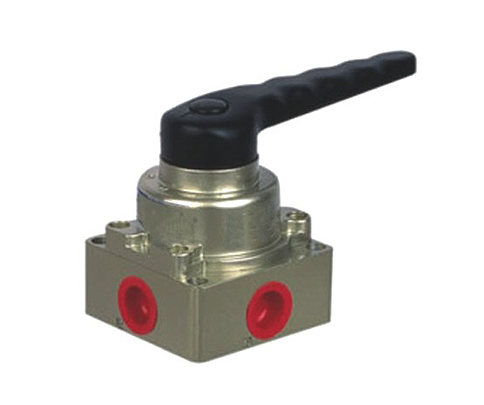

Rotary series: Rotary series hand switching valve is 3/4.The port size 1/8” to 1 1/2”. The large port size body is made of ceramics, which is the support of the large flow rate.




HV400HV-02K24R8-06


Joint Pipe Bore G1/4~G1/2
Working Medium 40 Micron Filtered Air
Pressure Range 0~0.8PMa
Temperature Range 0~60℃
HV Ordering Code
HV 400 02 B
Specification Code Series No. Joint Pipe Code Joint Pipe Type
Hand-switching Valve   02:G1/4 Blank:Pipe Connection Type
    03:G3/8 B:Plate Connection Type
    04:G1/2
