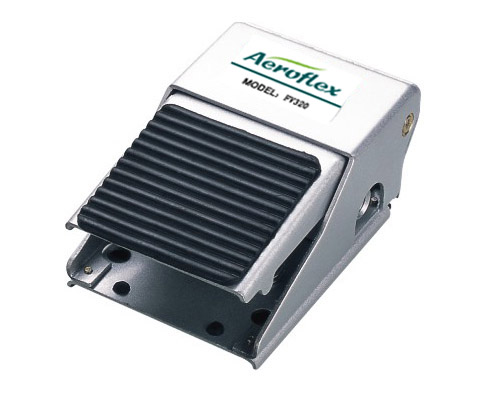

        FV series foot valves

FV series foot valves:
Foot –petal FV series: This series valve is used in all kinds of pneumatic system. It is often operated by the foot, without hands. The working pattern is 3/2, which R、P position can be changed from each other. Thus it makes normally closed to normally open.

Joint Pipe Bore Air Inlet=Air Outlet=G1/8~G1/4
Working Medium 40 Micron Filtered Air
Working-Pressure Range 0~8.0Kgf/c㎡
Operating Temperature Range 0~60℃
FV Ordering Code
FV 320
Specification Code Position and Way Number
Foot Valve 320:Two-position Three-way
  420:Two-position Four-way
