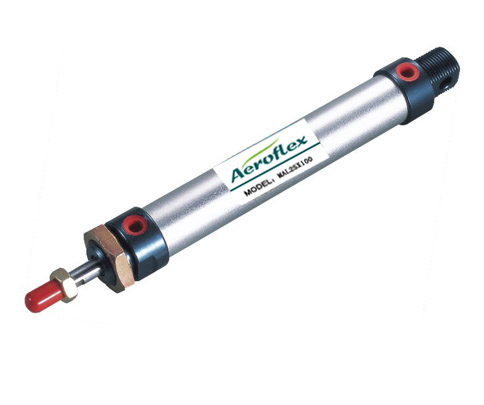

MA/MAL Mini series cylinder

MA/MAL Mini series cylinder:
MA series: MA series is made of the higher lever steel material. It is thermos table and endurable. The bore size is often from 16mm to 40 mm. We do this type cylinder ourselves, except the sealing. We can also manufacture the special type according to the customer requirement.

MAL

Bore Specification(㎜)	16	20	25	32	40
Joint Pipe Bore	M5×0.8	G1/8			G1/4
Motion Pattern	Double Action or Single Action
Working Medium	Pass Filtered&Lubricator Compress Air
Fixed Type	Basic type LB/type FA/type SDB/type
Working-pressure	1～9.0Kgf/c㎡
Ensured Pressure Resistance	0～70℃
Operating Temperature Range	50～800㎜/s
Operating Speed Range	Softland Buffer
Buffer Type

U	25	×	50	25	S:Attach	LB
Blank:Fishtail Type	Cylinder		Stroke	Adjustable Stroke	Magnet	Fixed Type
U:Horizontal Type	Bore			25:Adjustable Stroke 25	Blank:Not	Blank:Basic Type
CM:Rounded Type				30:Adjustable Stroke 30	Attach Magnet	LB:Front and Back Fixed Type FA:Front Cover Fixed Type(Front Flange Type) SDB:Back Cover Swinging Type

MAL

Bore Specification(㎜)	16	20	25	32	40
Joint Pipe Bore	M5×0.8	G1/8			G1/4
Motion Pattern	Double Action or Single Action
Working Medium	Pass Filtered&Lubricator Compress Air
Fixed Type	Basic type LB/type FA/type SDB/type
Working-pressure	1～9.0Kgf/c㎡(Single Action 2.5～9.0Kgf/c㎡)
Ensured Pressure Resistance	13.5Kgf/c㎡
Operating Temperature Range	0～70℃
Operating Speed Range	50～800㎜/s
Buffer Type	Softland Buffer

U	25	×	50	25	S:Attach	LB
Blank:Fishtail Type	Cylinder		Stroke	Adjustable Stroke	Magnet	Fixed Type
U:Horizontal Type	Bore			25:Adjustable Stroke 25	Blank:Not	Blank:Basic Type
CM:Rounded Type				30:Adjustable Stroke 30	Attach Magnet	LB:Front and Back Fixed Type FA:Front Cover Fixed Type(Front Flange Type) SDB:Back Cover Swinging Type
