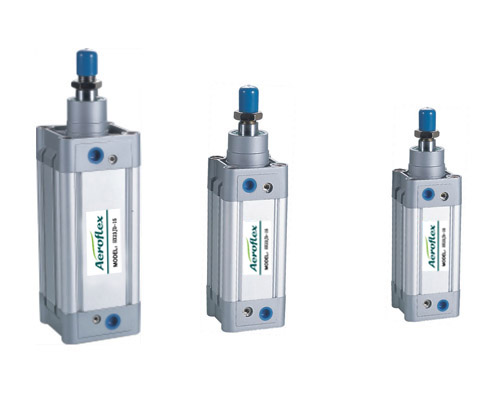

        DNC standard cylinder

DNC standard cylinder:
DNC series: DNC series are manufactured according to ISO6431 standard. We has two kinds square type and mini type, normally the bore size from 32mm to 100mm. The sealing of the cylinder is from PARKER, which the support for the good quality.


DNC

Bore Specification (㎜) 32 40 50 63 80 100
Joint Pipe Bore G1/8 G1/4 G1/4 G3/8 G3/8 G1/2
Motion Pattern Double Action
Working Medium Pass Filtered&Lubricator Compress Air
Fixed Type Basic type  FA type  FB type  CA type  CB type  LB type  TC type  TC-M type
Working-pressure 1~9.0Kgf/c㎡
Ensured Pressure Resistance 13.5Kgf/c㎡
Operating Temperature Range 0~70℃
Operating Speed Range 50~800㎜/s
Operating Life Not Under 4000Km
Buffer Type  Adjustable Buffer
Max. Stroke 25 30 35
Buffer stroke 500 800 1000 1200 1500
